CET107050T系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
0.15 0.49 90.0 42.0 -55~+150 SMD 立即购买
0.22 0.53 65.0 40.0 -55~150 SMD 立即购买
0.33 1.10 60.0 28.0 -55~150 SMD 立即购买

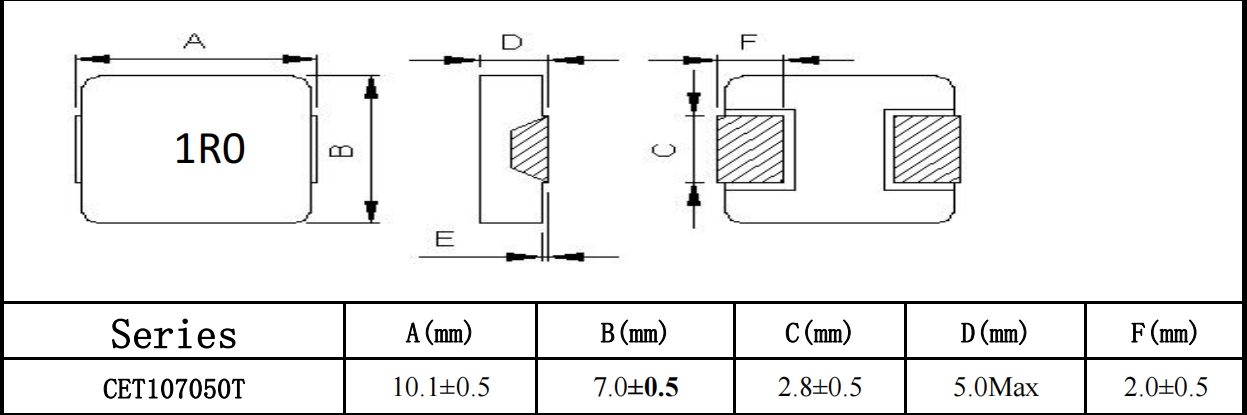

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -55℃ to +150℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
5. Test Frequency: 100KHZ,1.0V
