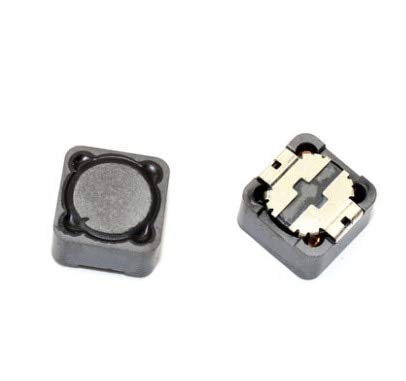

CET124-RH系列

型号

电感值

(μH)

DCR

(Ω)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
CET124-1R5N-RH 1.5 0.009 8
6.6
 -40~105.0 SMD 立即购买
CET124-3R3N-RH 3.3 0.015 6.5
5.4
 -40~105.0 SMD 立即购买
CET124-4R7M-RH 4.7 0.022 5.7 4.75 -40~105.0 SMD 立即购买
CET124-6R8M-RH 6.8 0.028
5.5
4.5
 -40~105.0 SMD 立即购买
CET124-100M-RH 10 0.035
5.2
 4.3 -40~105.0 SMD 立即购买
CET124-150M-RH 15 0.05 5.0
4.1
 -40~105.0 SMD 立即购买
CET124-220M-RH 22 0.066 4.2 3.5 -40~105.0 SMD 立即购买
CET124-330M-RH 33 0.08 3.3 2.75 -40~105.0 SMD 立即购买
CET124-470M-RH 47 0.15 2.8 2.3 -40~105.0 SMD 立即购买
CET124-680M-RH 68 0.18 2.2 1.8 -40~105.0 SMD 立即购买
CET124-101M-RH 100 0.24 1.5 1.25 -40~105.0 SMD 立即购买
CET124-151M-RH 150 0.53 1.3 1.08 -40~105.0 SMD 立即购买
CET124-221K-RH 220 0.62 1.2 1.0 -40~105.0 SMD 立即购买
CET124-331K-RH 330 0.95 1.0 0.8 -40~105.0 SMD 立即购买
CET124-471K-RH 470 1.5 0.9 0.75 -40~105.0 SMD 立即购买
CET124-681K-RH 680 1.76 0.7 0.58 -40~105.0 SMD 立即购买
CET124-102K-RH 1000 2.82 0.5 0.41 -40~105.0 SMD 立即购买

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -40℃ to +105℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
